Generelt

A vertical chamber type MINI is a desktop version with vertical air flow. It is designed specifically for smaller, simpler tasks that require clean working conditions.

Funktionsprincip

The chamber takes air from the environment through the pre-filter. A fan then pushes the air through the absolute filter into the working area, where a laminar air flow is created which vertically travels towards the working surface Since the work plate is perforated the air goes through it and doesn’t create a turbulent air flow. Direct air flow assures higher cleanliness class.

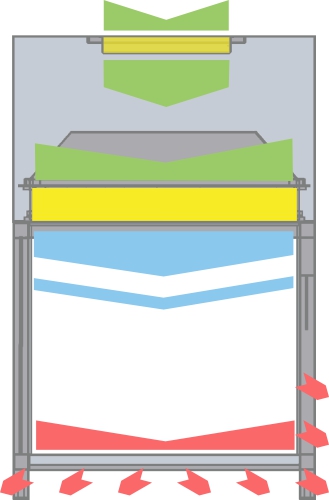

MINI S Air flow

Specifikationer

  • Surface of metal construction protected with powder coating in RAL 9010
  • Framework from sealed aluminum profiles
  • Working surface from perforated stainless steel
  • Illumination of working area with FLUO light
  • Operating parameters controlled by a microprocessor
  • Absolute filter quality H14 / EN1822
  • Protection of working space by tempered glass

Type

MINI S

Outside dimen.  W x D x H [mm]

510x510x780

Working room W x D x H [mm]

480x480x425

Max. connecting power [W]

70

Air flow [m/s]

0,4

Operating voltage [V/Hz]

230/50

Weight [kg]

38
